The Apex Mini takes the full-size Apex's protected element design and fits it into a 14 x 32 in floor-standing heater, 4 in shorter than the full Apex. Three sizes, 6 to 9 kW, made in Canada.

A smaller footprint

At 32 in tall on adjustable legs, the Apex Mini is Homecraft's compact, space-efficient option for small and mid-size rooms. Clearance to combustibles is 3.5 in, with a minimum 45 in to the ceiling.

Sizing and electrical, by model

6 kW: 200 to 325 cu ft, 40 amp breaker, 8 AWG wire
7.5 kW: 250 to 370 cu ft, 40 amp breaker, 8 AWG wire
9 kW: 325 to 450 cu ft, 50 amp breaker, 8 AWG wire

All three run on 240V single-phase, hardwired by a licensed electrician.

Controls, trim, and rocks

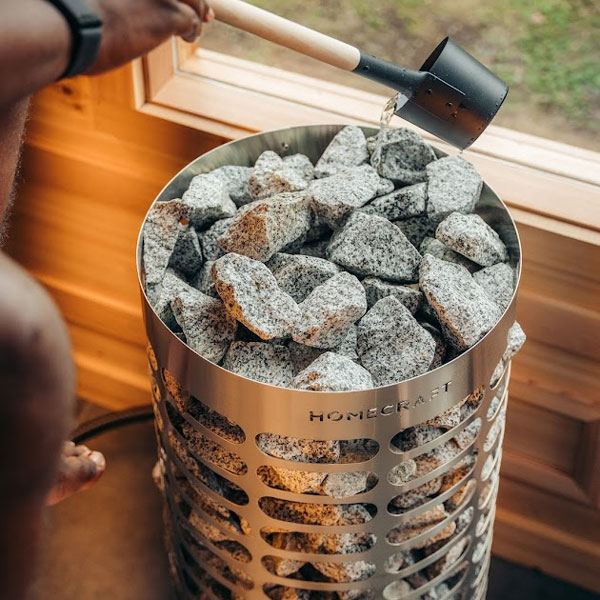

Three things go with the heater: the control, the installation trim kit, and Homecraft sauna rocks at 3 to 6 in. Add all three when you order so the electrician has everything on day one.

Specifications

Dimensions: 14 in x 32 in, floor-standing with adjustable legs
Construction: stainless steel, protected element air chamber
Power: 6, 7.5 or 9 kW, 240V single-phase
Clearance: 3.5 in to combustibles, 45 in to ceiling
Certification: CSA and UL approved
Warranty: 2 years residential, 1 year commercial, heating elements excluded
Made in Canada

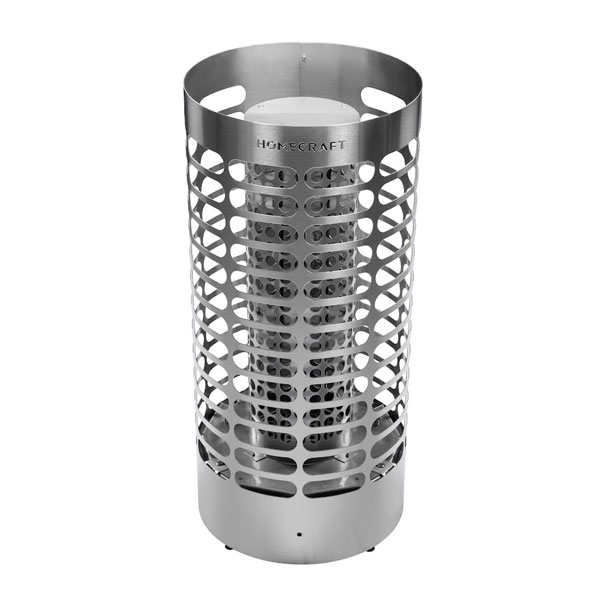

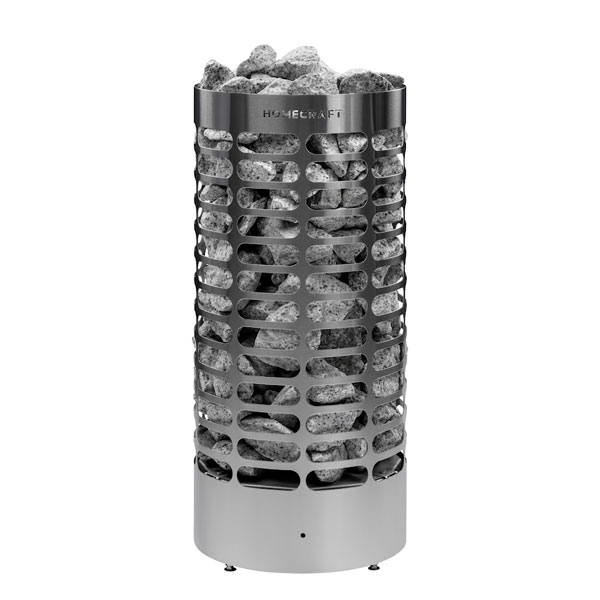

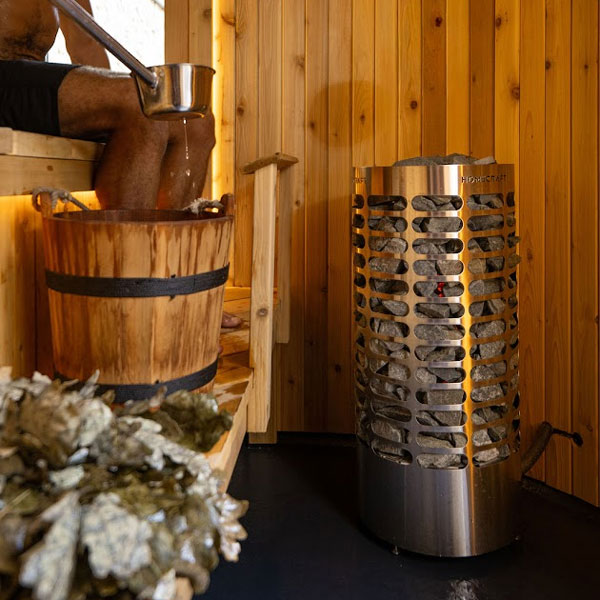

Homecraft Apex Mini Electric Sauna Heater
